Enervex
RSIF Power
Venter
RSIF Power Venters can ONLY be
purchased
through an authorized Enervex commercial rep
The RSIF model is based on the BESF model but designed for the higher
temperatures associated with flue gases.
Excellent as an
in-line draft induction for gas fireplaces
where one cannot, or does not, want a chimney fan at termination point. |
|
The ENERVEX RSIF Power Venter is an efficient high
temperature ventilator with forward-inclined impeller. The ventilator housing is
made of galvanized steel and insulated on all sides with fiberglass mats. The
insulation assures a very low noise level and reduces the risk of condensation.
The RSIF is equipped with a direct drive, energy-efficient,
totally enclosed, variable speed motor. A service door on the front
provides easy access to the inside of the fan and the duct connections. The
motor and impeller are mounted on the door. The door has lockable snap locks.
The duct connections are of the slip connection type with adaptors available for
ease of installation.

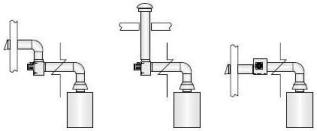

The Power Venter can be mounted on vibration isolating
support legs or from ceiling mounted brackets. The RSIF model is approved
for temperatures up to 400°F (205°C), non-condensing applications.
|
The ENERVEX RSIF power venter is intended for use as an inline draft
inducer for gas fireplaces furnaces and water heaters. Not only is it quiet,
it is also invisible. - variable speed
- high temperature Class H motor
- capacities up to 1,000 CFM
- access door for easy access to chimney
- insulated housing for a low noise level
- versatility in installation options
- ETL-listing to UL378, Standard for Draft Equipment
- standard adapters that fit B-vent and flanged stacks
|
|
Use |
Warranty |
Material |
Motor |
Listings |
|
The ENERVEX RSIF Power Venter is intended for use as an in-line draft inducer. It is specifically designed for applications where
reliable and efficient operation, low noise level, low energy consumption,
variable speed and compact design are of utmost importance. |
2 year factory warranty |
The housing is made of galvanized steel and insulated
with 1.25" thick fiberglass mats.
|
Commercial grade, totally enclosed, variable speed single
phase motor. Class H insulation class motor with sealed and permanently
lubricated ball bearings. Thermal overload protection. |
ETL listing # E109205550D
UL378-Draft Equipment
CSA-CAN3-B255-M81-
Mechanical Flue Gas Exhausters
CE compliant
Manufactured at ISO9001 certified plant
|
