EXHAUSTO
Grease Fans
& Kitchen Exhaust
GSV 200-450 |
Exhausto GSV fan for installation at the chimney termination
point, vertically or for side-wall venting. Assures a negative
pressure in the entire chimney or stack system.
Discharges vertically (horizontally if side-wall venting) at
a high velocity.
The fan housing is hinged and the top can be opened for easy
service and access to stack. |
|
EXHAUSTO's grease fan can be used with wood and gas
fired BBQ’s, pizza ovens, fireplaces and more.
Quick Facts:
- QUIET OPERATION
- Virtually invisible from the ground
- Lowest operating cost
- Cast aluminum housing
- Vitrually maintenance free
The GSV Fan is mounted on top of the chimney. It pulls exhaust and/or
grease from pizza ovens, BBQ’s, fireplaces, etc,
It is easy to install and virtually maintenance free.
With the variable speed feature, EXHAUSTO fans are designed to be
part of present and future energy efficient kitchen ventilation systems.
This feature also allows our fan to operate continuously at temperatures
of up to 575 ° F (300 ° C) |
In restaurant applications, GSV grease fans are
used to vent broilers, BBQ, Pizza Ovens, fryers and other cooking
appliances. With direct drive and variable speed they offer great energy
savings and savings on operations and maintenance as there are not belts
that can break.
In residential applications, GSV and BESF can vent
kitchen hoods and pizza ovens. They can be used as “remote fans” that eliminate
ventilation and motor noise in a kitchen while still providing maximum
ventilation. The fans have variable speed and can be interlocked with most
kitchen hoods that have variable speed control ability.
Common Accessories
|
EXHAUSTO
Fan Speed Control
FSC
Included with RS Series Fans |
 |
|
EXHAUSTO Fan Speed Control FSC is used in conjunction with all single-phased
EXHAUSTO chimney fans. The fan speed control is specially engineered to
provide variable speed control of split-capacitor motors. This control is
accomplished by reducing the line voltage to the motor thereby using only
the energy required to maintain the desired volume of air flow (fan speed).
Notice: The RSV 400 and 450 are 3x200-240VAC and cannot be controlled
with this kind of fan speed control |
| |
Exhausto SCA
Steel Chimney Adapter
For metal flue pipe
installation
 |
 |
Material
The steel chimney adapter is made of 16GA, 304 stainless
steel.
Warranty
2-year factory warranty
Downloadable PDF
Steel Chimney Adapter |
EXHAUSTO
Steel Chimney Adapter is used when installing the chimney fan on the
top of a single, double or triple wall steel chimney.
The adapter is designed to
slide into the steel chimney for a tight fit. The outer diameter of
the collar is 1/8" smaller than the inner diameter of the steel
chimney and has a 5" deep collar. |
|

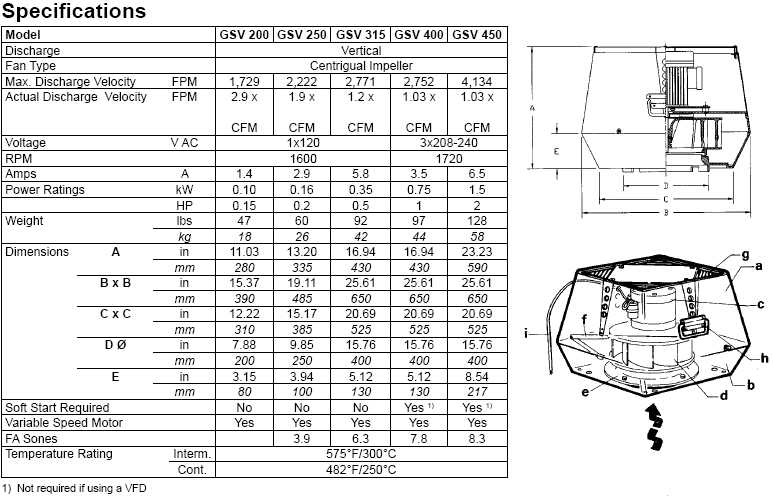

Exhausto Grease Fans
5 sizes
GSV 200, GSV 250, GSV 315,
GSV 400, GSV 450
 |
Downloadable PDF's
GSV Product Info
 |
Exhaust grease fans for installation at the duct or vent termination
point, vertical or side-wall mounted. Ensures a negative pressure in the
entire duct or vent system. Discharges vertically (horizontally, if
side-wall mounted) at a high velocity.
The fan housing is hinged and the top can be opened for easy
service and access to stack.
The GSV model is approved for temperatures up to 575°F
(300°C).
|
Material |
Motor |
Listings |
Optional Equipment |
|
Exhausto Grease fans housing is made of cast aluminum with a thickness of 3/16"
and is corrosion resistant. One coat of grey hammer-paint finish is applied.
Backwards curved impeller of cast aluminum.
Dynamically and statically balanced with permanently
attached balancing weights.
|
GSV 250-315: Single phase, split capacitor, totally
enclosed, Class H insulated, IP54 Protection Class.
Sealed ball bearings. Variable Speed. Thermal overload
protection.
GSV 400-450: Three phase totally enclosed TEFC motor, Class
F insulated. Sealed ball bearings. Variable Speed. Thermal overload
protection.
|
ETL listing #E109205550D
UL762-Standard for Power Roof Ventilators for restaurant
exhaust appliances.
ULC-S645-93-Standard for Power Roof
Ventilators for commercial and institutional
kitchen exhaust
systems.
|
5Amp or 8Amp Fan Speed Control
Gasket
Roof Curb
Variable Frequency Drive
|
|
Standard Equipment |
Approvals |
Warranty |
|
2"x4" or 4"x4" junction box
with cover and conduit
Bird Screen
|
CE Compliant
City of New York Department of Building
City of Los Angeles
The Commonwealth of Massachusetts (G1-1295-29)
|
2-year factory warranty on the entire Exhausto grease fans.
10-year warranty against corrosion perforation.
Manufactured at ISO9001 certified plant.
|
Exhausto Fans...the
ultimate draft solution.
